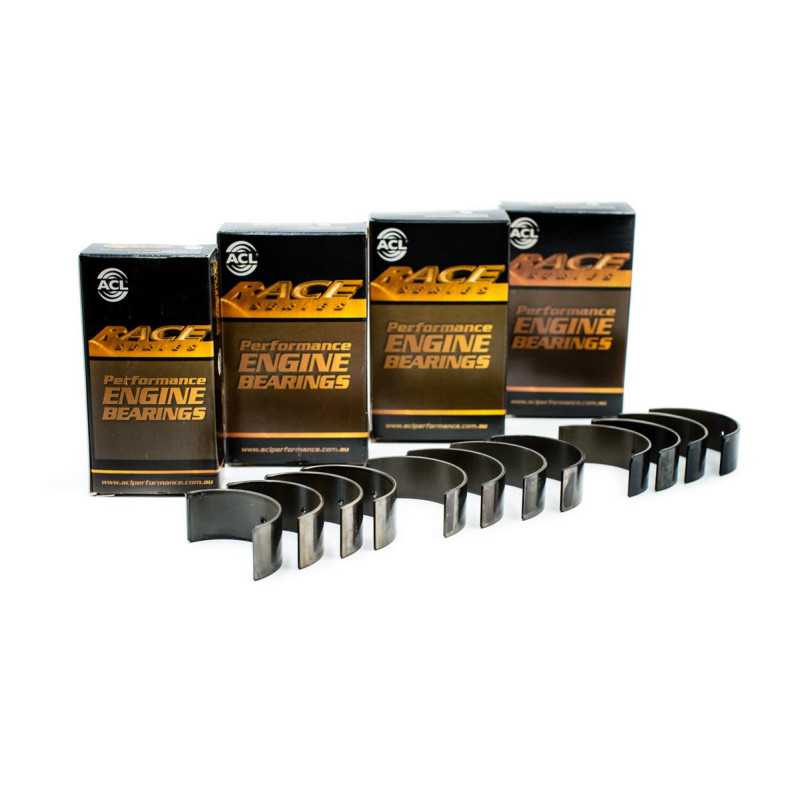

Bmw B58 B30 A Coussinets de bielles ACL Race Series (jeu majoré) Cote standard

ACL Race Series — ACL est un fabricant australien de coussinets et paliers moteur haute performance, fondé en 1974. Fournisseur de nombreuses équipes de compétition en Formule 1, V8 Supercars et endurance, ACL Race Series est la référence mondiale pour les applications moteur extrêmes. Leurs coussinets sont fabriqués avec des alliages de précision et des revêtements exclusifs (Aluglide, Calico CT-1) pour maximiser la résistance à l'usure et la tenue en charge.

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Shaft [mm]: 49.975 / 49.992|\nMax. Wall: 1.793|\nMax. Length: 17|\nTunnel [mm]: 53.6 / 53.619|\nHalf type: Upper & lower|\nNote: 0.001"" extra oil clearance on STD journal.

Véhicules compatibles

Liste partielle : 100 véhicules affichés sur 103 compatibles.
