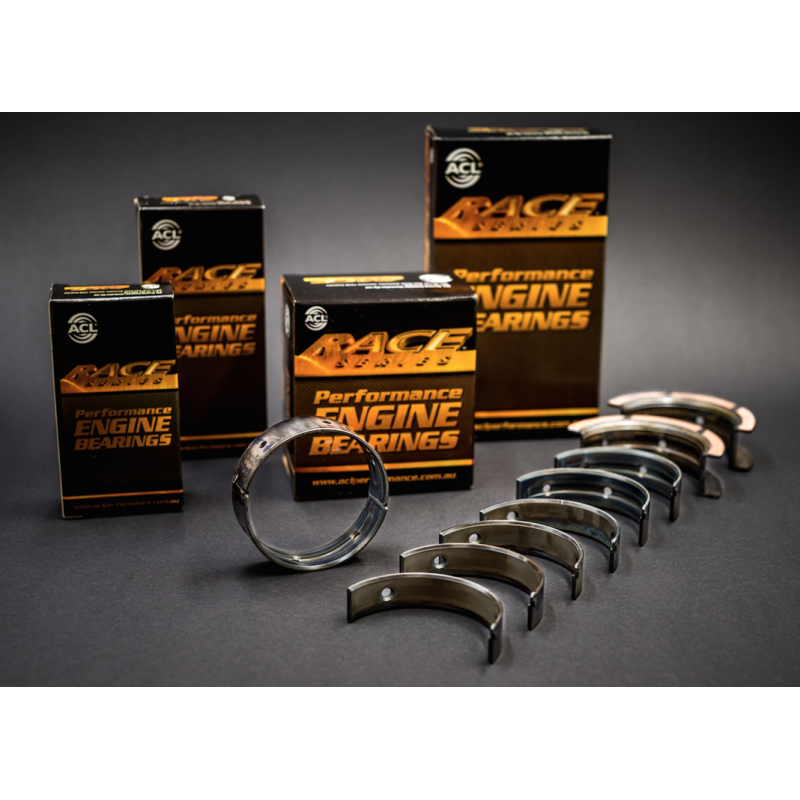

Audi 7A Coussinets de bielles ACL Race Series Cote standard

Name: Audi 7A Coussinets de bielles ACL Race Series Cote standard
Brand: ACL
SKU: 5B1606HX-STD
Price: 52.74 EUR
Availability: PreOrder

€52.74

Tax included

Audi 7A Coussinets de bielles ACL Race Series Cote standard. Référence ACL 5B1606HX-STD. Qualité performance, origine Australie. Vendu à l'unité.

Quantity

Délai de livraison : 5 à 10 jours

Security policy

We use BNP 3D Secure and certificat SSL

Delivery policy

We use DPD, TNT, Fedex and DB Schenker

Return policy

See our dedicated page about our Lifetime Warranty

ACL Race Series — ACL est un fabricant australien de coussinets et paliers moteur haute performance, fondé en 1974. Fournisseur de nombreuses équipes de compétition en Formule 1, V8 Supercars et endurance, ACL Race Series est la référence mondiale pour les applications moteur extrêmes. Leurs coussinets sont fabriqués avec des alliages de précision et des revêtements exclusifs (Aluglide, Calico CT-1) pour maximiser la résistance à l'usure et la tenue en charge.

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

High strength overlay plate with reduced thickness for improved fatigue properties
Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
Increased crush for improved bearing retention
Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
Tight consistent wall tolerances to help you maintain consistent clearances.
Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Tunnel [mm]: 50.600 / 50.619|\nShaft [mm]: 47.758 / 47.778|\nMax. Wall: 1.405|\nMax. Length: \t17.4|\nHalf type: Identical halves

Véhicules compatibles

Liste partielle : 100 véhicules affichés sur 168 compatibles.

Marque	Modèle	Cylindrée	Code moteur
Audi	90 B3 (893, 894, 8A2)	2.3 E 20V	7A
Audi	90 B3 (893, 894, 8A2)	2.3 E 20V Quattro	7A
Audi	Coupe B3 (89, 8B3)	2.3 20V	7A
Audi	Coupe B3 (89, 8B3)	2.3 20V Quattro	7A
Audi	A6 C4 Avant (4A5)	2.3	AAR
Audi	A6 C4 Avant (4A5)	2.3 Quattro	AAR
Audi	A6 C4 (4A2)	2.3	AAR
Audi	A6 C4 (4A2)	2.3 Quattro	AAR
Audi	100 C4 Avant (4A5)	2.3	AAR
Audi	100 C4 Avant (4A5)	2.3 Quattro	AAR
Audi	100 C4 Saloon (4A2)	2.3	AAR
Audi	100 C4 Saloon (4A2)	2.3 Quattro	AAR
Audi	Coupe B2 (81, 855, 856)	2.2 Quattro	JT
Audi	4000 (USA)	2.2	JT
Audi	80 B2 Saloon (811, 813, 814, 819, 853)	2.2	JT
Audi	90 B2 (813, 814, 853)	2.2 Quattro	JT
Audi	100 C3 Avant (445, 446)	2.0 E	KP
Audi	100 C3 Saloon (443, 444)	2.0 E	KP
Audi	100 C3 Avant (445, 446)	2.2	KU
Audi	100 C3 Avant (445, 446)	2.2 Cat	KU
Audi	100 C3 Avant (445, 446)	2.2 Cat Quattro	KU
Audi	100 C3 Avant (445, 446)	2.2 Quattro	KU
Audi	100 C3 Saloon (443, 444)	2.2	KU
Audi	100 C3 Saloon (443, 444)	2.2 Cat	KU
Audi	100 C3 Saloon (443, 444)	2.2 Cat Quattro	KU
Audi	100 C3 Saloon (443, 444)	2.2 Quattro	KU
Audi	200 C3 Saloon (447, 448)	2.2	KU
Audi	Coupe B2 (81, 855, 856)	2.2 GT	KV
Audi	Coupe B2 (81, 855, 856)	2.2 Quattro	KV
Audi	Coupe B3 (89, 8B3)	2.2	KV
Audi	Coupe B3 (89, 8B3)	2.2 Quattro	KV
Audi	90 B2 (813, 814, 853)	2.2	KV
Audi	90 B2 (813, 814, 853)	2.2 Quattro	KV
Audi	90 B3 (893, 894, 8A2)	2.2	KV
Audi	90 B3 (893, 894, 8A2)	2.2 Quattro	KV
Audi	100 C3 Avant (445, 446)	2.2	KZ
Audi	100 C3 Saloon (443, 444)	2.2	KZ
Audi	5000 (USA)	2.2	KZ
Audi	100 C3 Avant (445, 446)	2.2 E Quattro	PX
Audi	100 C3 Saloon (443, 444)	2.2 E Quattro	PX
Audi	Coupe B2 (81, 855, 856)	2.0	HP
Audi	80 B2 Saloon (811, 813, 814, 819, 853)	2.0	HP
Audi	90 B2 (813, 814, 853)	2.0	HP
Audi	80 B2 Saloon (811, 813, 814, 819, 853)	2.0	JL
Audi	Coupe B2 (81, 855, 856)	2.0	JS
Audi	80 B2 Saloon (811, 813, 814, 819, 853)	2.0	JS
Audi	80 B2 Saloon (811, 813, 814, 819, 853)	2.0 Quattro	JS
Audi	90 B2 (813, 814, 853)	2.0	JS
Audi	90 B2 (813, 814, 853)	2.0 Quattro	JS
Audi	Coupe B2 (81, 855, 856)	2.2 GT	KX
Audi	4000 (USA)	2.2	KX
Audi	80 B2 Saloon (811, 813, 814, 819, 853)	2.2	KX
Audi	90 B2 (813, 814, 853)	2.2	KX
Audi	Quattro (85)	2.1 Turbo	GV
Audi	200 C3 Avant (447, 448)	2.1 Turbo Quattro	JY
Audi	200 C3 Avant (447, 448)	2.1 Turbo Quattro	KG
Audi	200 C3 Saloon (447, 448)	2.1 Turbo	KG
Audi	200 C3 Saloon (447, 448)	2.1 Turbo Quattro	KG
Audi	100 C3 Avant (445, 446)	2.2 Quattro	MC
Audi	100 C3 Avant (445, 446)	2.2 Turbo Quattro	MC
Audi	100 C3 Avant (445, 446)	2.2 Turbo	MC
Audi	100 C3 Saloon (443, 444)	2.2	MC
Audi	100 C3 Saloon (443, 444)	2.2 Turbo Quattro	MC
Audi	100 C3 Saloon (443, 444)	2.2 Quattro	MC
Audi	100 C3 Saloon (443, 444)	2.2 Turbo	MC
Audi	200 C3 Avant (447, 448)	2.2 Turbo	MC
Audi	200 C3 Avant (447, 448)	2.2 Turbo Quattro	MC
Audi	200 C3 Saloon (447, 448)	2.2 Turbo	MC
Audi	200 C3 Saloon (447, 448)	2.2 Turbo Quattro	MC
Audi	5000 (USA)	2.2 Turbo	MC
Audi	Quattro (85)	2.1 Turbo	WR
Audi	Quattro (85)	2.1 Turbo Quattro	WX
Audi	100 C3 Saloon (443, 444)	2.2 Quattro	WX
Audi	100 C3 Avant (445, 446)	2.3	NF
Audi	100 C3 Avant (445, 446)	2.3 Quattro	NF
Audi	100 C3 Saloon (443, 444)	2.3	NF
Audi	100 C3 Saloon (443, 444)	2.3 Quattro	NF
Audi	200 C3 Avant (447, 448)	2.3	NF
Audi	200 C3 Saloon (447, 448)	2.3	NF
Audi	5000 (USA)	2.3	NF
Audi	Cabriolet B3 (8G7)	2.3	NG
Audi	Coupe B2 (81, 855, 856)	2.3	NG
Audi	Coupe B2 (81, 855, 856)	2.3 Quattro	NG
Audi	Coupe B3 (89, 8B3)	2.3	NG
Audi	Coupe B3 (89, 8B3)	2.3 Quattro	NG
Audi	4000 (USA)	2.3	NG
Audi	80 B3 Saloon (893, 894, 8A2)	2.3	NG
Audi	80 B3 Saloon (893, 894, 8A2)	2.3 Quattro	NG
Audi	80 B4 Avant (8C5)	2.3	NG
Audi	80 B4 Avant (8C5)	2.3 Quattro	NG
Audi	80 B4 Saloon (8C2)	2.3	NG
Audi	80 B4 Saloon (8C2)	2.3 Quattro	NG
Audi	90 B3 (893, 894, 8A2)	2.3	NG
Audi	90 B3 (893, 894, 8A2)	2.3 Quattro	NG
Audi	Coupe B3 (89, 8B3)	2.0 20 V	NM
Audi	Coupe B3 (89, 8B3)	2.0 20 V Quattro	NM
Audi	90 B3 (893, 894, 8A2)	2.0 20 V	NM
Audi	90 B3 (893, 894, 8A2)	2.0 20 V Quattro	NM
Audi	90 B3 (893, 894, 8A2)	2.0	PS
Audi	100 C2 Avant (435, 436)	2.0 D	CN

Reference 5B1606HX-STD

Data sheet

Type: Coussinets de bielles ACL Race Series
Origine: Australie
Qualité: Performance
Référence: 5B1606HX-STD
Produit: Moteur
Cote: Cote standard
