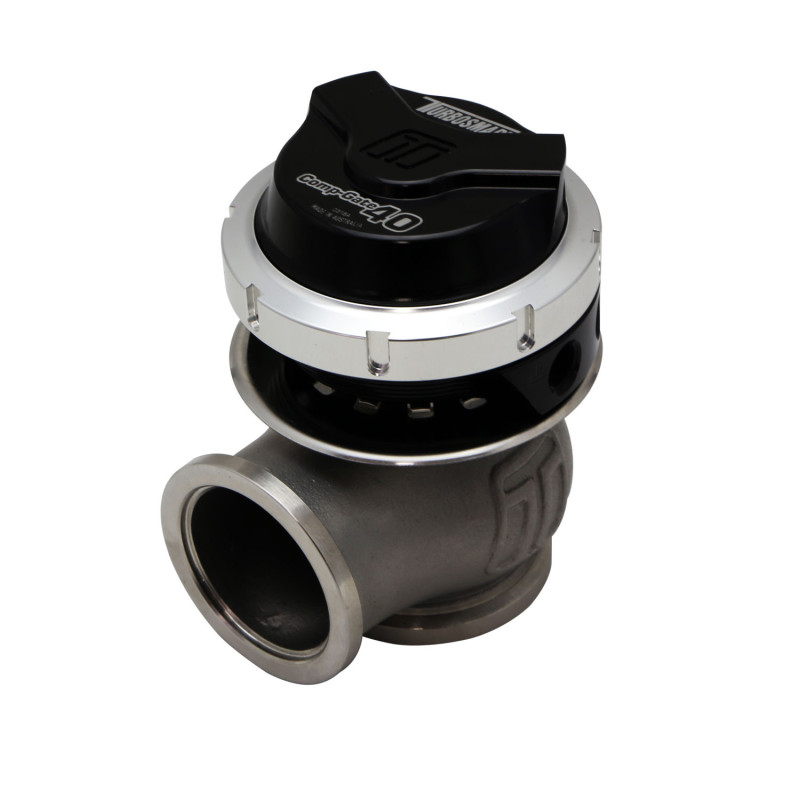

WG40 GenV Compgate 40 7psi Black
search
  • WG40 GenV Compgate 40 7psi Black

WG40 GenV Compgate 40 7psi Black

461,94 €
TTC
WG40 GenV Compgate 40 7psi Black
Quantité
Sur commande, 1 à 3 semaines

Fermer
  Security policy

Transactions sécurisées par BNP 3D Secure et certificat SSL

  Type d'expédition

Expédition avec suivi (sauf cas particulier)

  Conditions de retour

Avec notre accord, voir page dédiée


The Gen-V WG40 Comp-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

They are also available in Motorsport and compressed gas-only versions for those requiring specific applications.

Features:
  • Direct swap for Turbosmart Gen 4 Comp-Gate 40, inlet is the same as other 38/40mm V-band wastegates
  • 40mm valve size
  • High temp spring combinations from 3 – 26psi supplied in the box
  • 1/8”NPT ports
  • V-band clamp mounting system to suit 1-3/4” OD pipe
  • Locking collar for compact size and easy spring changes
  • Available in Motorsport and Compressed Gas versions
  • Hall Effect, Non-Contact Position Sensor Option Available

Supplied with
  • Wastegate unit (pre-assembled with spring as per order)
  • SS316 Valve seat
  • Inlet V-Band
  • Inlet SS304 weld flange
  • Outlet V-Band
  • Outlet SS304 weld flange
  • Collar tool (master/slave)
  • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
  • Sticker
  • Instruction card

Download Data Sheet


media.nl?id=1640718&c=830533&h=17f8ceded2eb93f8d235&whence=
TS-0552-1002

Fiche technique

Produits
Moteur
Origine
Australie
Qualité
Performance
