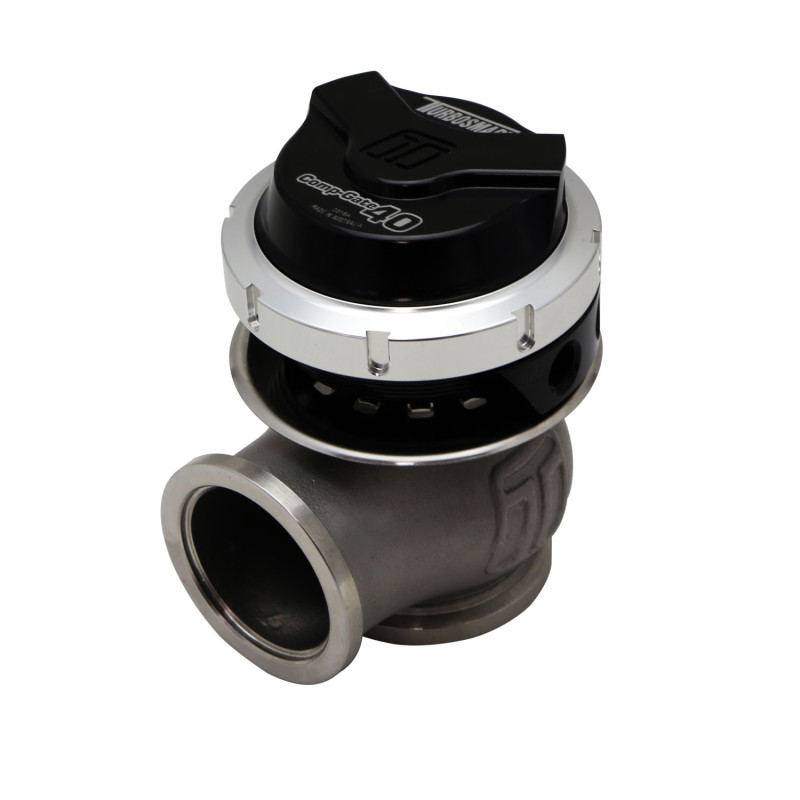

WG40 GenV Compgate 40 14psi Black
461,94 €
TTC
WG40 GenV Compgate 40 14psi Black
Security policy
Transactions sécurisées par BNP 3D Secure et certificat SSL
Type d'expédition
Expédition avec suivi (sauf cas particulier)
Conditions de retour
Avec notre accord, voir page dédiée
The Gen-V WG40 Comp-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate.
The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.
They are also available in Motorsport and compressed gas-only versions for those requiring specific applications.
Features:
Direct swap for Turbosmart Gen 4 Comp-Gate 40, inlet is the same as other 38/40mm V-band wastegates40mm valve sizeHigh temp spring combinations from 3 – 26psi supplied in the box1/8”NPT portsV-band clamp mounting system to suit 1-3/4” OD pipeLocking collar for compact size and easy spring changesAvailable in Motorsport and Compressed Gas versionsHall Effect, Non-Contact Position Sensor Option Available
Supplied with
Wastegate unit (pre-assembled with spring as per order) SS316 Valve seat Inlet V-Band Inlet SS304 weld flange Outlet V-Band Outlet SS304 weld flange Collar tool (master/slave) 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed) 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipplesSticker Instruction card
Direct swap for Turbosmart Gen 4 Comp-Gate 40, inlet is the same as other 38/40mm V-band wastegates40mm valve sizeHigh temp spring combinations from 3 – 26psi supplied in the box1/8”NPT portsV-band clamp mounting system to suit 1-3/4” OD pipeLocking collar for compact size and easy spring changesAvailable in Motorsport and Compressed Gas versionsHall Effect, Non-Contact Position Sensor Option Available
Supplied with
Wastegate unit (pre-assembled with spring as per order) SS316 Valve seat Inlet V-Band Inlet SS304 weld flange Outlet V-Band Outlet SS304 weld flange Collar tool (master/slave) 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed) 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipplesSticker Instruction card
TS-0552-1012
