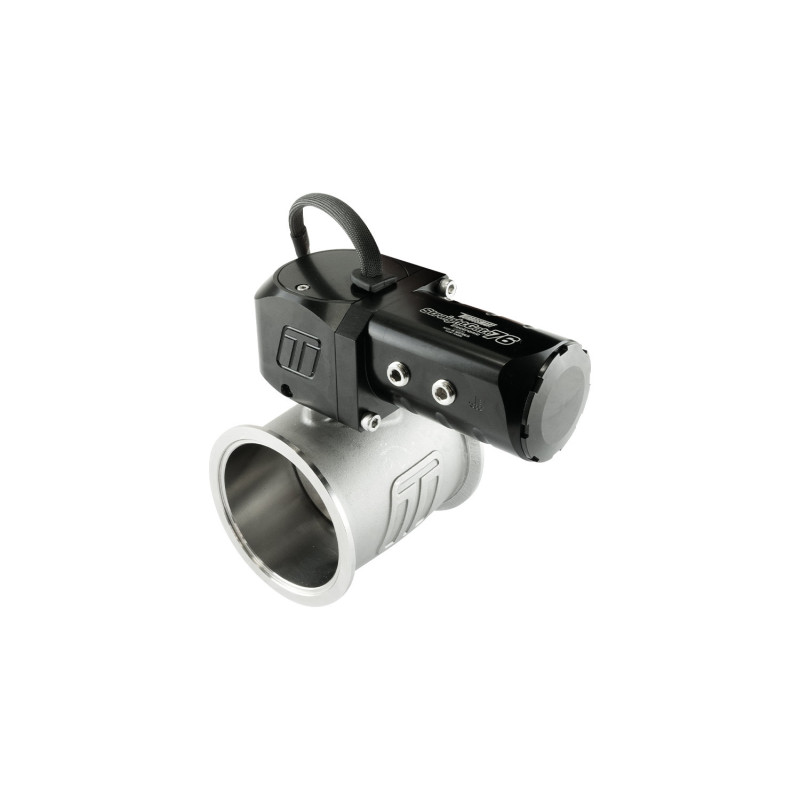

TS-0567-1002 eSG76 Electronic StraightGate Black

Introducing the TS-0567-1002 eSG76 Electronic StraightGate Black – the world’s highest flowing external wastegate! The eSG76 is a zero-offset butterfly-style wastegate that delivers enormous flow and almost linear control, offering unparalleled boost control throughout the entire operating range.

Turbosmart’s eSG76 Electronic StraightGate is Patent Pending and builds on the success of the Multiple Award-Winning, World-First eSG50 Electronically Actuated Butterfly-Style External Wastegate. With no reference hoses, springs, or diaphragms, it provides full electronic control through a servo motor and Turbosmart’s zero-backdrive gearbox. This design reduces current demands and ensures operational stability even against high drive pressures. The eSG76 includes onboard sensors for actuator temperature and valve position in both analog and digital formats. Electronic actuation allows for a wide tuning window, from zero boost (if manifold priority allows) to all available boost.

The Turbosmart StraightGate76 is a ground-up design that sets a new standard in control and flow, unmatched by any wastegate before it. Its zero-offset butterfly valve is equally exposed to exhaust drive pressure on both valve halves, resulting in a self-balanced valve that can actuate against even the highest drive pressures with ease. This self-balancing design widens the tuning window, regardless of how the valve is actuated. Increased flow is achieved through the efficiency of a straight-through valve compared to traditional poppet-style valves that require the exhaust gas to make a 90-degree turn.

Available In

•

• StraightGate40

• StraightGate50

• StraightGate76


Features

•

• 76mm (2.99in) Butterfly Style Zero-Offset Valve

• 723.7 CFM / 20.49m3 per minute flow

• Stainless Steel (630) Butterfly and shaft

• Stainless Steel (347) Main Body

• Stainless Steel (Heat Treated 431) V-Band Clamps

• 360 Degree Mounting options on V-Band

• Clock-able Actuator Position (3 x 120 Deg Options)

• Full Electronic Actuation (Dual H-Bridge Input)

• Onboard (0-5v) Analog Actuator Temperature Sensor

• Onboard (0-5v) Analog Valve Position Sensor

• Onboard (PWM) Digital Valve Position Sensor

• 7 Wire Unterminated Flying Lead Loom

• Liquid Cooling for Actuator Stability


What's Included

•

• Electronic StraightGate Unit

• Un-Terminated Flying Lead

• StraightGate Inlet and Outlet V-Bands

• StraightGate Inlet and Outlet Weld Flanges

• Turbosmart Decal
