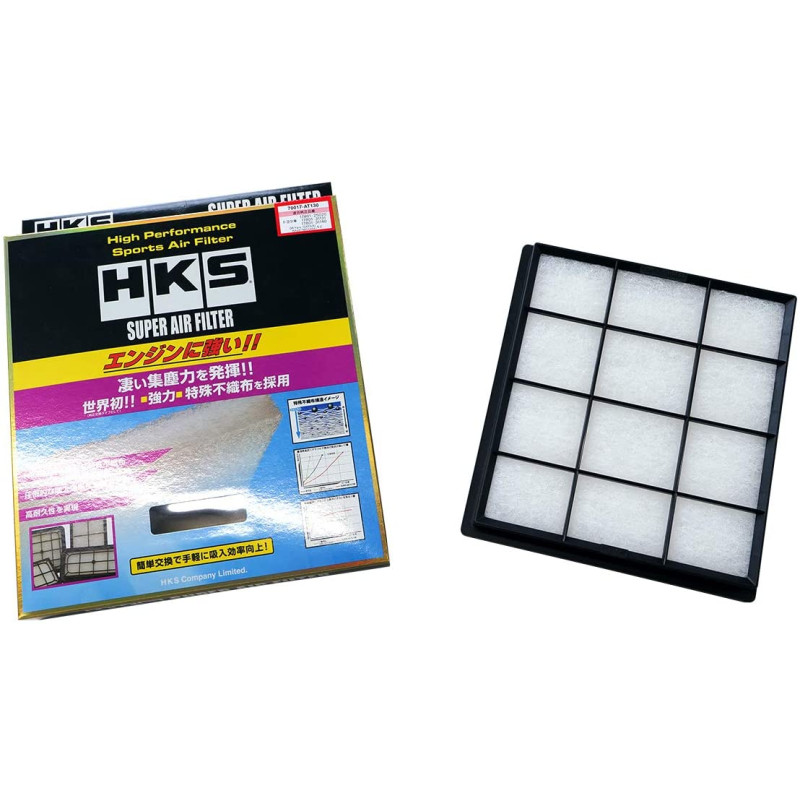

Filtre à air HKS Super GR Yaris Lexus

Newly Developed Dry Non-woven Fabric Filter

• The density gradient structure where filter density becomes higher with each layer ensures all sizes of dust and other particles are caught in the most effective way. Optimizing the fiber components reduces the ventilation resistance.

Low Resistance & High Dust Collection Capacity

• Even though the intake resistance is reduced, the dust collection capacity is higher than previous model. (Collected more than 95% dust volume during in-house testing) Reliably capturing dust to provide clean air to the engine.

Long-term Low Resistance

• Even after long-term use of the filter, the intake resistance stays as low as new.

Filter Specifications

	Super Air Filter	Super Hybrid Filter
Filter
Material	Monolayer Polyester Non-woven Fabric (Density Gradient Structure）	Polyurethane Foam (Coarser&Thin Layer) + Nylon Woven Fabric
Color	White	Yellow Green
Thickness	25mm ±3mm ※1	20mm ±3.2mm

※1. Due to the thickness increase, the gap between the upper and lower frame may be too large to fit. If this is the case, push the frame in to install the filter.

Filter Structure Comparison

• A pleated type sports filter usually collects various sizes of dust on its surface; therefore, air passage becomes narrower which easily causes filter clogging even initial ventilation resistance is low.
• HKS Super Air Filter utilizes the density gradient structure where filter density becomes higher with each layer ensures all sizes of dust and other particles are caught gradually which maintains proper air passage resulting in a long product life.

Super Air Filter Replacement

Super Air Filter replacement. Easyily remove the old filter to replace the new one without changing the frame.
3 sizes (S, M and L) avaible for cutting.
